Realtime Biometrics Devices Connection Diagrams | Door Access | Realtime Biometrics

Almost All the realtime Biometrics devices can be connected on door access, means all the biometrics can be used for access control purpose to block the unauthorized access son doors and for all the devices there is the separate connection for different biometrics.

The below images will show you the connection diagrams for different-different Realtime Biometrics devices.

Below are the connection diagrams of some majorly used Biometrics.

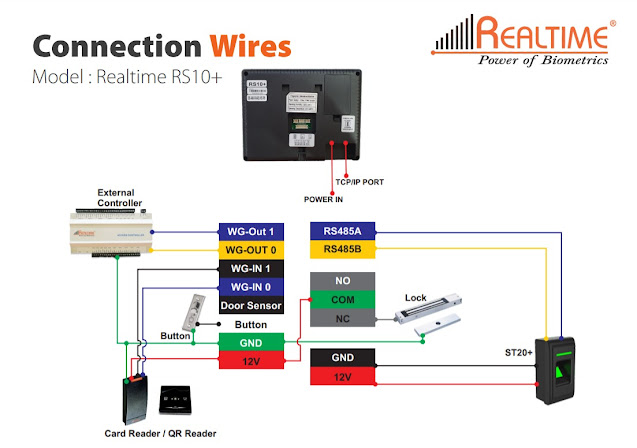

  • Realtime RS10+

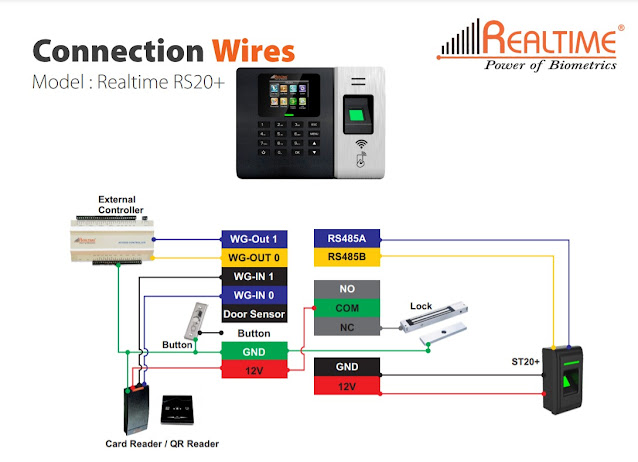

  • Realtime RS20+
  • Realtime T52F+
  • Realtime T52F
  • Realtime 61F
  • Realtime RS70+
  • Realtime 401F+
  • Realtime RS850+
